Rare diseases impact some 400 million people worldwide, accounting for over 7,000 individual disorders, and most of these, about 80%, have a genetic cause. Notwithstanding their incidence, diagnosing rare diseases is notoriously difficult. Patients already suffer through lengthy diagnostic processes that average more than five years, often resulting in sequential misdiagnoses and invasive procedures. All these delays have a profoundly negative effect on the efficacy of treatment and patient quality of life. This diagnostic dilemma is largely driven by the clinical heterogeneity of the rare conditions, the low prevalence of individual conditions, and the lack of exposure of clinicians. These limitations highlight an urgent need for sophisticated, accurate diagnostic tools that can integrate various medical knowledge to detect rare conditions and initiate timely interventions.
Existing Diagnostic Tools and Their Limitations
Diagnosing rare diseases relies extensively on specialized bioinformatics tools such as PhenoBrain, a platform that processes Human Phenotype Ontology (HPO) terms, and PubCaseFinder, a tool that identifies and matches similar clinical cases in medical literature. These methods predominantly leverage structured clinical terminologies and historical case records. Concurrently, recent advancements in large language models (LLMs), including general-purpose GPT models and medically trained versions, such as Baichuan-14B and Med-PaLM, have begun to contribute to diagnostic processes by effectively managing multimodal clinical data. Despite these developments, existing approaches typically face limitations. Traditional bioinformatics tools often lack the adaptability to keep pace with emerging medical knowledge. At the same time, general-purpose language models may not sufficiently capture the nuances inherent in rare disease phenotypes and genotypes, resulting in suboptimal performance.
Introduction to DeepRare Diagnostic System

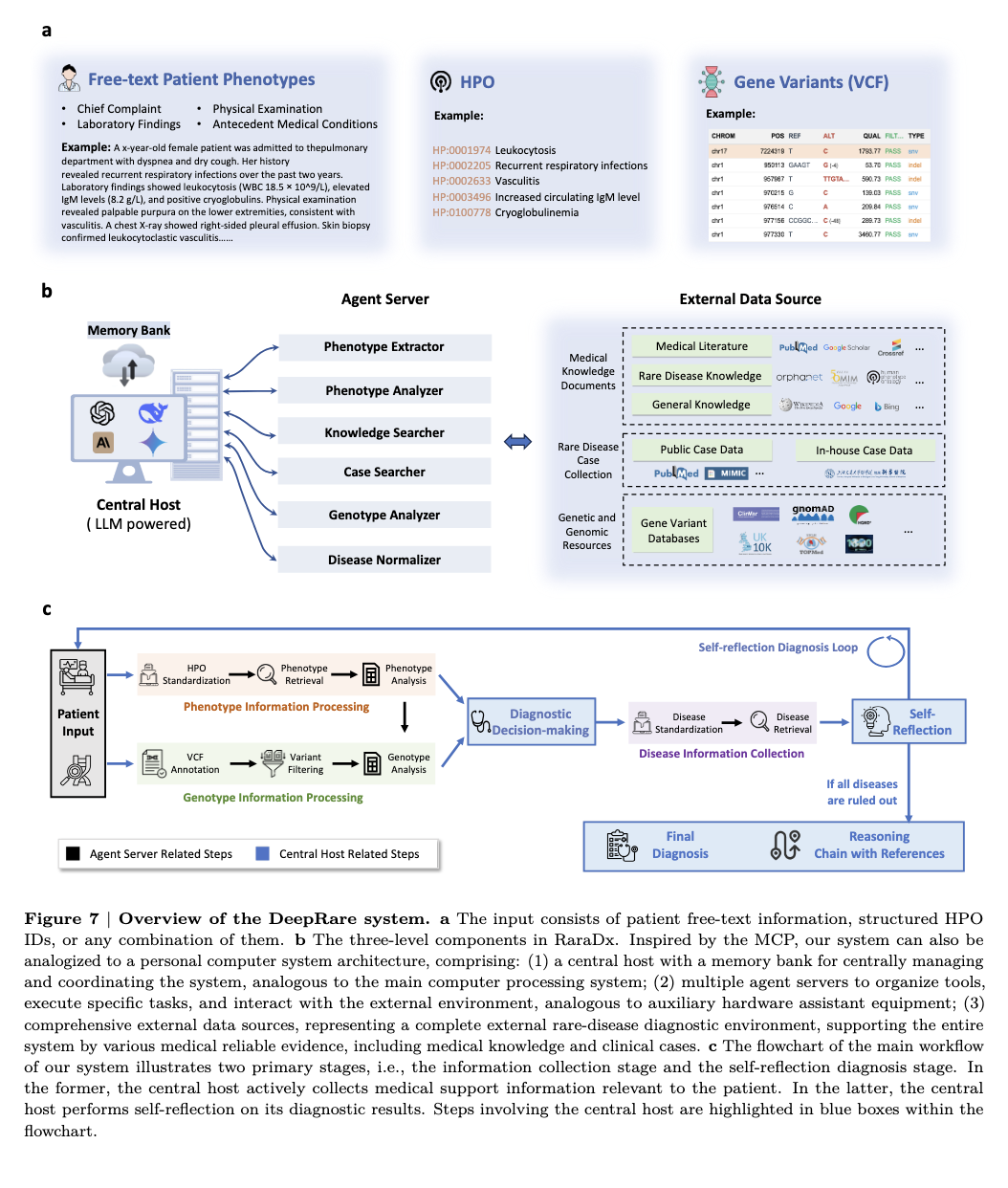

Researchers at Shanghai Jiao Tong University, the Shanghai Artificial Intelligence Laboratory, Xinhua Hospital affiliated with the Shanghai Jiao Tong University School of Medicine, and Harvard Medical School introduced the first rare disease LLM-driven diagnostic platform, DeepRare. This system represents the first agentic diagnostic solution specifically designed for identifying rare diseases, effectively integrating advanced language models with comprehensive medical databases and specialized analytical components. DeepRare’s architecture is constructed on a three-tiered, hierarchical design inspired by the Model Context Protocol (MCP). At its core lies a central host server enhanced by a long-term memory bank and powered by a state-of-the-art LLM, which orchestrates the entire diagnostic workflow. Surrounding this central host are multiple specialized analytical agent servers, each designated to perform targeted diagnostic tasks such as phenotype extraction, variant prioritization, case retrieval, and comprehensive clinical evidence synthesis. The outermost tier comprises robust, web-scale external resources, including up-to-date clinical guidelines, authoritative genomic databases, extensive patient case repositories, and peer-reviewed research literature, providing critical reference support.
Workflow of DeepRare Diagnostic System
The DeepRare diagnostic process begins when clinicians input patient data, either free-text clinical descriptions, structured HPO terms, genomic sequencing data in variant call format (VCF), or combinations thereof. The central host systematically coordinates these agent servers to retrieve pertinent clinical evidence from external sources, tailored precisely to each patient’s medical profile. Subsequently, preliminary diagnostic hypotheses are generated and iteratively refined via a self-reflective mechanism, wherein the host continuously evaluates and validates emerging hypotheses through supplementary evidence gathering. This iterative process effectively minimizes potential diagnostic errors, significantly reducing incorrect diagnoses and ensuring that conclusions remain well-grounded in verifiable medical evidence. Ultimately, DeepRare produces a ranked list of diagnostic candidates, each explicitly supported by transparent and traceable reasoning chains that directly reference authoritative clinical sources.
Evaluation Results and Benchmarking

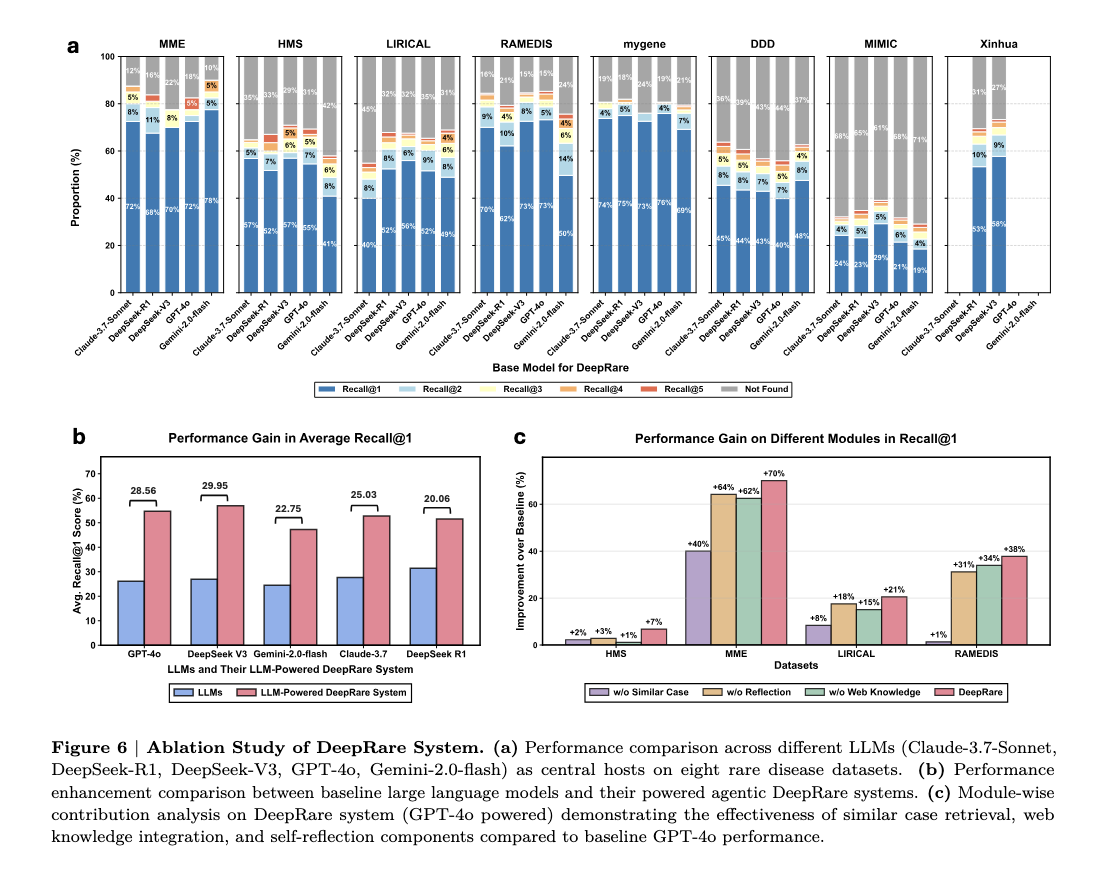

In rigorous cross-center evaluations, DeepRare exhibited exceptional diagnostic accuracy across eight benchmark datasets sourced from clinical institutions, public case registries, and scientific literature in Asia, North America, and Europe. The combined datasets encompassed 3,604 clinical cases representing 2,306 distinct rare diseases across 18 medical specialties, including neurology, cardiology, immunology, endocrinology, genetics, and metabolism. DeepRare demonstrated substantial diagnostic superiority, achieving an impressive overall accuracy of 70.6% for top-ranked diagnosis recall when integrating both phenotypic (HPO terms) and genetic sequencing data. This outcome considerably surpassed baseline diagnostic models and alternative agentic and LLM approaches evaluated concurrently. Specifically, compared to the second-best method, Exomiser, which achieved a recall of 53.2%, DeepRare demonstrated a marked improvement of 17.4 percentage points. Additionally, in multimodal clinical scenarios that incorporate genomic data, DeepRare’s accuracy increased notably from 46.8% (using phenotype data alone) to 70.6%, highlighting its proficiency in synthesizing comprehensive patient information for accurate diagnoses.
Clinical Validation and Usability

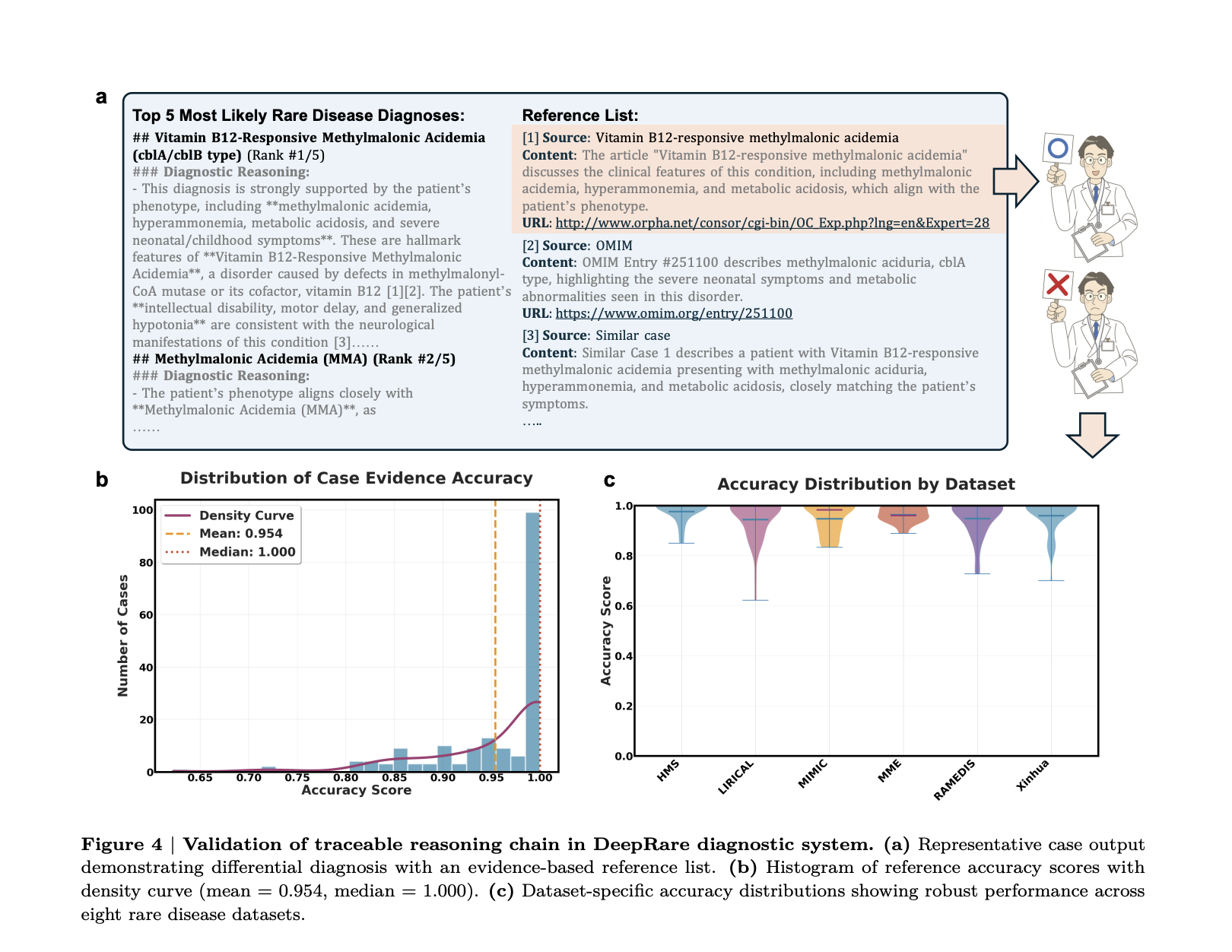

Extensive clinician evaluations of DeepRare involving 50 complex cases affirmed its diagnostic reasoning, achieving a 95.2% expert agreement rate on clinical validity and traceability. Physicians recognized its efficiency in producing accurate and clinically relevant references, significantly reducing diagnostic uncertainty. For practical clinical integration, DeepRare is accessible via a user-friendly web application that enables the structured input of patient data, genetic sequencing files, and imaging reports.
Key Highlights of DeepRare
- DeepRare introduces the first comprehensive agentic AI diagnostic system, explicitly tailored for rare diseases, that integrates state-of-the-art language models, specialized analytical modules, and extensive clinical databases.
- It employs a hierarchical, modular architecture comprising a central host server and multiple analytical agent servers, ensuring systematic and traceable diagnostic processes.
- Across extensive international datasets totaling 3,604 patient cases, DeepRare achieved superior diagnostic accuracy (70.6% recall at top-ranked diagnosis) compared to traditional bioinformatics tools and existing large language model systems.
- The integration of phenotypic and genomic data notably enhanced diagnostic recall, highlighting the system’s robust multimodal analytical capability.
- Expert evaluations demonstrated a 95.2% agreement rate on the validity and clinical relevance of DeepRare’s transparent reasoning processes, underscoring its reliability in real-world clinical settings.
- A user-friendly web application facilitates practical clinical integration, allowing comprehensive patient data input, symptom refinement, and automated clinical report generation, directly benefiting healthcare professionals.
Conclusion: Transforming Rare Disease Diagnosis with DeepRare
In conclusion, this research represents a transformative advancement in rare disease diagnostics, significantly addressing historical diagnostic challenges through the introduction of DeepRare. By combining sophisticated language model technology with specialized clinical analytical agents and extensive external databases, DeepRare substantially enhances diagnostic accuracy, reduces clinical uncertainty, and accelerates timely intervention in rare disease patient care.
